Now we will add the ability to do a linear crossfade between any two of our four basic waveforms. We will employ our delayed vibrato scheme to regulate the speed of the crossfade.

instr 7 ; toot7.orc
ifunc1 = p11 ; initial waveform
ifunc2 = p12 ; crossfade waveform
ifad1 = p3 * p13 ; calculate initial fade
ifad2 = p3 - ifad1 ; calculate remaining dur
irel = .01 ; set vibrato release
idel1 = p3 * p10 ; calculate initial delay
isus = p3 - (idel1 + irel) ; calculate remaining dur
iamp = ampdb(p4)
iscale = iamp * .166 ; p4=amp
inote = cpspch(p5) ; p5=freq
k3 linseg 0, idel1, p9, isus, p9, irel, 0 ; p6=attack time
k2 oscil k3, p8, 1 ; p7=release time
k1 linen iscale, p6, p3, p7 ; p8=vib rate
a6 oscil k1, inote*.998+k2, ifunc2 ; p9=vib depth
a5 oscil k1, inote*1.002+k2, ifunc2 ; p10=vib delay (0-1)
a4 oscil k1, inote+k2, ifunc2 ; p11=initial wave
a3 oscil k1, inote*.997+k2, ifunc1 ; p12=cross wave
a2 oscil k1, inote*1.003+k2, ifunc1 ; p13=fade time
a1 oscil k1, inote+k2, ifunc1
kfade linseg 1, ifad1, 0, ifad2, 1
afunc1 = kfade * (a1+a2+a3)
afunc2 = (1 - kfade) * (a4+a5+a6)
out afunc1 + afunc2
endin


; toot7
f1 0 2048 10 1 ; Sine
f2 0 2048 10 1 .5 .3 .25 .2 .167 .14 .125 .111 ; Sawtooth
f3 0 2048 10 1 0 .3 0 .2 0 .14 0 .111 ; Square
f4 0 2048 10 1 1 1 1 .7 .5 .3 .1 ; Pulse
;ins strt dur amp frq atk rel vibrt vbdpt vibdel strtwav endwav crosstime
i7 0 5 96 8.07 .03 .1 5 6 .99 1 2 .1
i7 6 5 96 8.09 .03 .1 5 6 .99 1 3 .1
i7 12 8 96 8.07 .03 .1 5 6 .99 1 4 .1
e

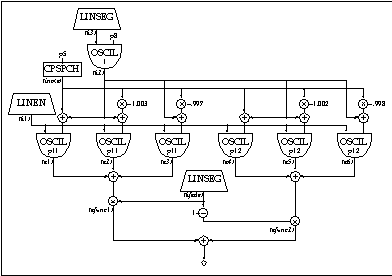

Toot 7: Crossfade
